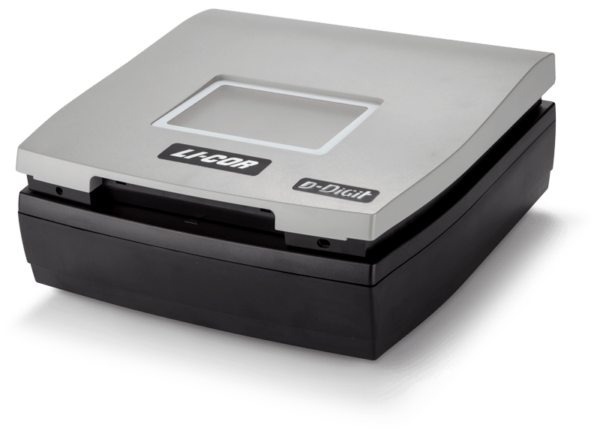

D-DiGit® Gel Scanner

Perform your nucleic acid gel imaging with a safe, consistent, single-system workflow with the D-DiGit Gel Scanner. Get the most out of your gel imager. Scan gels, small and large; excise bands; document your work; and visually analyze data; all on a single, compact platform.

The D-DiGit Gel Scanner enables safe and convenient detection and extraction of DNA and RNA samples stained with fluorescent safe stains, like SYBR® Safe. Visualize sample migration and conduct gel excision without contamination or the need to transfer gels between viewing and cutting services, and safely excise bands of interest to extract nucleic acids for downstream application. Safe stains are environmentally-friendly alternatives to ethidium bromide, and when added either during gel preparation, or as a post-electrophoresis stain, safe stains eliminate the need for hazardous disposal and hassles associated with ethidium bromide.

SKU: 3600 Category:
  • Image Area
    17.8 cm L × 12.7 cm W (7″ × 5″)
  • Resolution
    150, 300, and 600 dpi
  • Operating Temperature
    5-40 °C (41-104 °F)
  • Relative Humidity
    20% to 85%
  • Detector Type
    CCD
  • Light Source
    Blue LED
  • Exposure Times
    4X (default, 40 sec); ranges from 0.25X to 24X
  • Scanning Modes
    16 bit grayscale or 8 bit grayscale
  • Image File Format
    JPG (8 bit), TIFF (8 or 16 bit)
  • Excitation
    475 nm (± 15 nm)
  • Emission
    ≥ 520 nm
  • Sensitivity
    0.04 ng per band
  • Interfaces
    Hi-Speed USB (USB 2.0)
  • Voltage
    AC 100-240V, 50-60 Hz, 1.5A maximum (input);
    DC 15V, 2.5A (output)
  • Power Consumption
    37.5 W maximum
  • Power Supply
    Voltage: AC 100-240V
    MFR: HARD
    Model No.: HDAD38W101
  • Product Includes
    D-DiGit Blot Scanner, viewing shield, power cord, power adapter, USB cable, quick start guide
  • Dimensions
    30.48 cm L × 30.48 cm W × 12.70 cm H
    (12” × 12” × 5”)
  • Weight
    4.8 kg (10.56 lbs) without viewing shield
    5 kg (11 lbs) with viewing shield
  • Software Specifications
    Pentium IV PC; 300 MB HDD or above; 512 MB RAM or above; Microsoft Windows 7, 8, or 10
Weight 5 kg
Dimensions 30,48 × 30,48 × 12,70 cm
